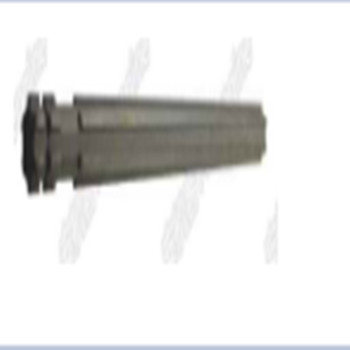

[聯軸器軸#645#D48407]
- 產品分類：攤鋪機配件
- 產品描述：
- 訂購熱線：
-
產品詳情
產品描述
聯軸器與軸的配合公差標準本文簡介：聯軸器與軸的配合公差標準彈性膜片聯軸器與軸的配合公差標準一般情況下，軸一般標0～+0.005如果是不常拆的話，就是+0.005～+0.01的過盈配合就可以了，如果要常常的拆裝就是過渡配合就可以了。我們還要考慮到軸材料本身在轉動時候的熱脹，所以軸承越大的話，最好是－0.005～0的間隙配合，最大也不要
聯軸器與軸的配合公差標準本文內容：
聯軸器與軸的配合公差標準
彈性膜片聯軸器與軸的配合公差標準
一般情況下，軸一般標0～+0.005
如果是不常拆的話，就是+0.005～+0.01的過盈配合就可以了，如果要常常的拆裝就是過渡配合就可以了。我們還要考慮到軸材料本身在轉動時候的熱脹，所以軸承越大的話，最好是－0.005～0的間隙配合，最大也不要超過0.01的間隙配合。還有一條就是動圈過盈，靜圈間隙。
①當彈性膜片聯軸器內徑公差帶與軸公差帶構成配合時，在一般基孔制屬過渡配合的公差代號將變?yōu)檫^盈配合，如k5、k6、m5、m6、n6等，但過盈量不大；當軸承內徑公差代與h5、h6、g5、g6等構成配合時，不在是間隙而成為過盈配合。
②彈性膜片聯軸器外徑公差帶由于公差值不同于一般基準軸，也是一種特殊公差帶，大多情況下，外圈安裝在外殼孔中是固定的，有些膜片聯軸器部件結構要求又需要調整，其配合不宜太緊，常與H6、H7、J6、J7、Js6、Js7等配合。
免責聲明丨 部分內容來源網絡！本文僅供交流學習 , 版權歸屬原作者，部分圖片、內容推送時未能及時與原作者取得聯系，若來源標注錯誤或侵犯到您的權益煩請告知，我們將立即刪除.
公司供應攤鋪機配件，壓路機配件，銑刨機配件，攤鋪機刮板驅動軸，刮板驅動軸總成，找平儀，找平儀支架以及液壓泵和配件。我廠還供應攤鋪機易損件，攤鋪機平衡梁，攪龍軸，踏板，輸料底板，葉片，熨平板，減速機，鏈軌，履帶板，支重輪，刮板大鏈條，輸料鏈條等。
聯系人：梁經理
聯系方式：13645201509
（微信同號）
QQ：2870202745
The fitting tolerance standard of coupling and shaft This article introduces: the fitting tolerance standard of coupling and shaft The fitting tolerance standard of elastic diaphragm coupling and shaft Generally, the shaft is generally marked with 0~+0.005 If it is not often disassembled, it is just an interference fit of+0.005~+0.01. If it is to be disassembled frequently, it is just a transition fit. We should also consider the thermal expansion of the shaft material itself during rotation, so the larger the bearing, the better the clearance fit is - 0.005~0, and the maximum is not
Matching tolerance standard of coupling and shaft:
Fit tolerance standard of coupling and shaft
Fit tolerance standard of elastic diaphragm coupling and shaft
Generally, the axis is generally 0~+0.005
If it is not often disassembled, the interference fit of+0.005~+0.01 is enough. If it is to be disassembled frequently, the transition fit is enough. We should also consider the thermal expansion of the shaft material itself during rotation, so the larger the bearing, the better the clearance fit is - 0.005~0, and the maximum clearance fit is not more than 0.01. Another is the dynamic coil interference and the static coil clearance.
① When the inner diameter tolerance zone of the elastic diaphragm coupling and the shaft tolerance zone form a fit, the tolerance code of the transition fit in the general base hole system will become an interference fit, such as k5, k6, m5, m6, n6, etc., but the interference amount is small; When the inner diameter tolerance of the bearing forms a fit with h5, h6, g5, g6, etc., it is no longer a clearance but an interference fit.
② The outer diameter tolerance zone of the elastic diaphragm coupling is also a special tolerance zone because the tolerance value is different from the general reference axis. In most cases, the outer ring is fixed in the shell hole. Some diaphragm coupling components need to be adjusted according to the structural requirements, and their fit should not be too tight, often with H6, H7, J6, J7, Js6, Js7, etc.
Disclaimer | Part of the content comes from the network! This article is only for exchange and learning. The copyright belongs to the original author. Some pictures and content are not timely contacted with the original author when being pushed. If the source label is incorrect or infringes your rights and interests, please inform us and we will delete it immediately
The company supplies paver parts, roller parts, milling machine parts, paver scraper drive shaft, scraper drive shaft assembly, leveling instrument, leveling instrument support, hydraulic pump and accessories. Our factory also supplies vulnerable parts of pavers, paver balance beams, auger shafts, pedals, feeding soleplates, blades, screeds, reducers, chain tracks, track shoes, rollers, scraper large chains, feeding chains, etc.
(WeChat with the same number)
